ROLAND XP-50 | 64 voice, expandable workstation based on the same synthesizer as a JV-1080. 640 internal patches, 96 performances, 10 drum sets. 3 independent effect processors (reverb, chorus, EFX - 40 effects). 16-multitimbral, 16-track sequencer, 3,5´floppy disc drive. 5 octave velocity and aftertouch sensitive keyboard. Real Time Phrase synthesizer. 16 Mb samples in ROM plus 4 slots for expansion boards for a total 80 Mb. Very powerful synthesizer with many cool features as 2 LFOs syncable to the MIDI clock, delays syncable to the MIDI, TVF, TVA, Pitch envelope, analogue feel parameter, 10 algorithms for wave, filters, ring modulator, booster and amplifer combinations. 2 sliders and new type of joystick for realtime control. | |
| Maximum Polyphony: 64 voicesNumber of Multitimbral Parts: 16 Memory Capacity Performances: Internal 64, User 32 Memory Capacity Patches: Internal 512, User 128 Memory Capacity Rhythm Sets: Internal 8, User 2 System Common Effects: Chorus, Reverb (8 types) EFX: 40 |
| Data Format: MRC Pro, Standard MIDI File (Format 0/1) convert load MRC (for MC-500/300/50/50mkII) Tracks: 16 Phase Tracks (16 MIDI Channels per Track) + 1 Tempo Track, 100 Pattern Tracks Resolution: 96 clocks per quater note Internal Memory: 20,000 notes External MFD: 99 Songs or 180,000 notes per disk Max. Length of Song: 9998 measures |
| Connectors: Output (L(Mono)/R), Hold, Pedal 1/2, Phones, MIDI IN / OUT / THRU Dimensions: 1023(W) x 348(D) x 97(H) mm (41" x 14" x 4") Weight: 9.3kg (20 lbs 9 oz) |
| ORCHESTRAL Expansion Board (SR-JV80-02) PIANO Expansion Board (SR-JV80-03) VINTAGE SYNTH Expansion Board (SR-JV80-04) WORLD Expansion Board (SR-JV80-05) DANCE Expansion Board (SR-JV80-06) SUPER SOUND SET Expansion Board (SR-JV80-07) KEYBOARDS OF THE 60's & 70's Expansion Board (SR-JV80-08) SESSION Expansion Board (SR-JV80-09) BASS AND DRUM Expansion Board (SR-JV80-10) TECHNO COLLECTION Expansion Board (SR-JV80-11) HIP HOP Expansion Board (SR-JV80-12) VOCAL COLLECTION Expansion Board (SR-JV80-13) ASIAN Expansion Board (SR-JV80-14) EXPERIENCE 2 Expansion Board (SR-JV80-98) EXPERIENCE Expansion Board (SR-JV80-99) |

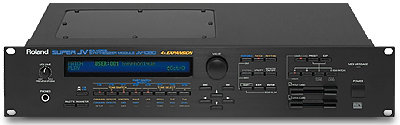

Roland JV-1080 | Rack version with more outputs (necessary for serious work). Roland also produces many other machines with the same synthesizer engine - XP-80 (better larger keyboard, larger display, more sliders, arpeggiator, more outputs,...), XP-60 (better keyboard - same quality as XP-80, arpeggiator, more sliders, larger display), XP-30 (no sequencer, better keyboard, more sliders, arpeggiator, some expansion board already installed), JV-2080 (larger display, 8 expansion slots...), JV-1010 (budget half rack JV-1080 editable with computer, one expansion board mounted, only one expansion board could be added) | |
